Full Auto Hematology Analyzer AJ-3125
Smart ,*Compact ,*Portable ,*Direct current ,*Emergency power supply ,*The minimum volume automated hematology analyzer in the world.
*Real portable instrument(only 12Kg)
*Especially applicable to moving service vehicle (345mmx245mmx325mm)
*TFT LCD (Optional Touch Screen)
*Exclusive patent technology, optional internal emergency DC power supply specially for suddenly power cut, outdoor and moving diagnosis.
1. Advanced Design Stable Performance
* Automatic sleep and wake up, saving energy. The sampling needle be automatically back
and out while stand by and wake up. It protects safe sampling and avoids contamination
caused by long time exposure.
* Large quantity test results storage, at least 400 thousand test results with comprehensive
information. Extended SD memory supported.
* Many reference value ranges (children, adult and the aged). The appropriate reference
value range could be automatically selected according to the inputted age and sex.
2. Accurate Analysis Perfect Quality
* Analysis mode includes venous blood, capillary blood and prediluted.
* Quality control mode of L-J, X-B and X-r. Westguard quality control regulation.
* Manual and automatic calibration available. Fresh blood calibration available also.
* Furnished with original reagents. Conform to the demand of International Standard
3. Simple Operation Low Consumption
* Sample volume venous blood 9.6μL, capillary blood 20μL.
* Repeat testing to avoid second sampling.
* Remained reagent volume detected and reminder the operator.
* Connect external printer as mini matrix printer, ink jet, stylus printer and laser printer.
* Each kind data transmitted to external computer by RS232 port.
4. Convenient Maintenance Safety & Eco-protection
* Automatic & Intelligent function of diagnosis and maintenance; the log sheet for
maintenance and malfunction could be established automatically.
* The remote upgrade, remote maintenance and remote detection of faulty are available.
* Soak, back & forth flush, high pressure burning block-clearing.
* Leaf door construct for convenient maintenance.

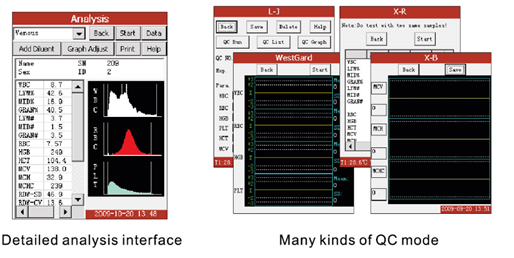

1. Detailed analysis interface.
2. Many kinds of QC mode.

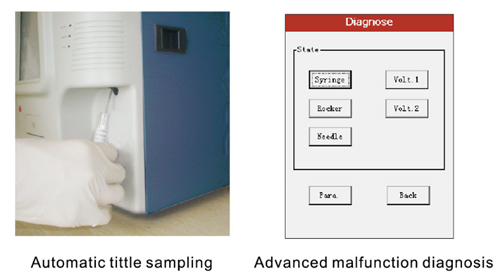

3. Automatic tittle sampling.
Advanced malfunction diagnosis.
Function: Automated WBC 3-differential, 18 parameters with 3 color histograms (WBC, RBC,PLT)
Principal: Electronic impedance, SFT method for hemoglobin
Analysis Mode: Optional venous blood, anticoagulant blood and prediluted blood
Sample Volume: Anticoagulant whole blood ≤9.6μL, Anticoagulant capillary blood ≤9.6μL,prediluted capillary blood ≤20μL, the sample volume for repeating two times testing and avoiding second sampling
Working Mode: Automatic sampling, detecting automatic testing, furnished with dilutor, no need diluting outside. Automatic dispensing lyse and making second diluting automatically
Block-clearing: Soak and washing back and forth, high pressure burning. Boast the function of monitoring incomplete blockage
Alarm: Automated system diagnosis, self testing, fault alarm and reagent shortage alarm.
Automated Maintenance: Automated washing during power on and power off, reducing the blockage rate
Standby Protection: 24 hours switch on, automatic sleep and wake up function
Storage: Large quantity test results storage, at least 400 thousand test results with
comprehensive information. Extended SD memory supported.
Control Mode: Quality control mode of L-J, X-B and X-r. Westguard quality control regulation
Calibration Mode: Manual and automatic calibration available. Fresh blood calibration available also.
Reference Value Setting: Many reference value ranges (children, adult and the aged). The appropriate reference value range could be automatically selected according to the inputted age and sex.
Discriminator Function: Float and fix discriminator. Manual adjust available
Display: TFT LCD (Optional Touch Screen)
Input Mode: Standard mouse and keyboard. Optional bar code reader
Print Mode: Internal high-speed thermal printer. Optional connection with specified external printer. English printouts
Report Format: Many kinds of report format (not less than 8 kinds)
Reagents System: Open reagent system. No cyanogen reagents. Provide original reagents.
Connection Port: USB, RS-232, network interface, LPT
