AJ-K800 2L / 5.2L / 6L Cassette Autoclave / Sterilizer

FOB Reference Price:Get Latest Price
US $2,000-4,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Boiling Sterilization Apparatus
Brand Name:
Anjue
Model Number:
AJ-K800
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
International standard carton or as your need
Port
SHANGHAI/SHENZHEN
Lead Time :
One week

Specifications

Cassette Autoclave of Dental Autoclave
1. The shortest sterilization cycle only needs 6-7 minutes
2. Three press buttons

  AJ-K800 (2L / 5.2L / 6L) Cassette Autoclave / Sterilizer

Application

It can be used in medical organizations like dental clinics, ophthalmology department, E.N.T. department, gynecology department, surgical operation room to sterilize the surgical instrument, glassware etc.



Mainly Performance and Characteristics

Fast: 9~15 minutes working cycle, faster than normal steam sterilizer.

Safe: The short heat time for medical instrument, make the instrument safety and keep the working life longer.

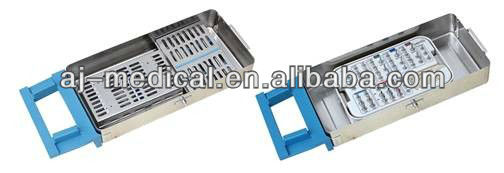

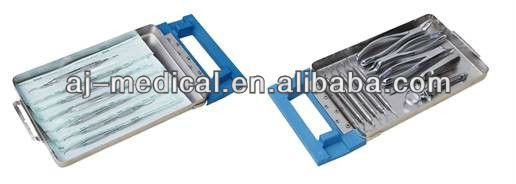

Convenience: Simple operating, sterilize cassette can be used as loading and transport tools, and storage. Easily sterilize and use.

Micro-computer control technology, LCD screen, touch button input

Temperature, pressure, time, working status, error alarm display on screen

Displace, heating, pressure rising, sterilizing, and exhaust, dry. Whole cycle is controlled by computer and automatic running.

Build-in steam generator, steam source is not needed from outside.

Digital printer can print the cycle time and various parameters of the running cycle.



Multiple Sterilize Cycle Provide

Our sterilizer provides 4 kind of automatic sterilize cycle. Each cycle designed for one specific instrument.



Key

Cycle Name

Specific Instrument

Sterilization Temperature

Sterilization
Time

Unwrapped

Cycle

Metal instrument like pliers, bur, teeth cleaning tools, tweezers etc

134°C

4min



Wrapped

Cycle

Wrapped(paper/paper or paper/plastic) solid material and metal instrument

134°C

10min



Non-metal

Plastic

121°C

20min



Big-size Instrument

Big-size unwrapped metal-instrument

134°C

8min





Automatic Detection

If the parameters like temperature, pressure, time haven’t achieved the setting value, or the autoclave has problem when running, the micro-computer system will halt the cycle running and display the problem on the LCD screen.



Specifications

Design pressure: 0.28Mpa

Design temperature:150°C

Sterilization Temp range: 105-136°C

Temperature uniformity: ≤±0.5°C

Temperature display precision: 0.1°C

Chamber material: SUS304 Stainless Steel

Maximum Working Pressure: 0.24Mpa

Water Tank Capacity: 3.4L



2 Liter

Sterilization chamber volume:2 L

Chamber Dimensions(L×W×H): 280*180*38mm

Overall Dimensions(L×W×H): 590*460*190mm

Net Weight:40 kg



5.2 Liter

Sterilization chamber volume:5.2 L

Chamber Dimensions(L×W×H): 380*180*80mm

Overall Dimensions(L×W×H): 590*460*190mm

Net Weight:45 kg



6 Liter

Sterilization chamber volume:6 L

Chamber Dimensions(L×W×H): 490*180*80mm

Overall Dimensions(L×W×H): 590*460*190mm

Net Weight:50 kg
