LCD Portable Pseudo Color US ultrasound scanner AJ-6100B

FOB Reference Price:Get Latest Price
US $100-1,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Portable Ultrasonic Diagnostic Devices
Brand Name:
ANJUE MEDICAL
Model Number:
AJ-6100B
Place of Origin:
China (Mainland)
Convex Probe:
2.5/3.5/4.0/5.0MHz multi-frequency
OB measurements:
BPD, GS, CRL, FL, AC, HC, etc
Display modes:
B, B+B, B+M, M, 4B;
Scanning mode:
Convex/Linear/Trans-vaginal/Trans-rectal;
Gray scales:
256;
Body marks:
18
Comment:
Date, Name, Sex, Age, Hospital, Annotation
Power supply:
AC 110V-240V, 50HZ/60HZ
Wide application:
abdomen, OB/GYN, urology, cardiology, small parts etc
Port:
USB 2.0, VGA, Video connector;
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Weight : 15KGS
CBM : 0.1 cubic meter
Standard package for the international transportation
Port
Shanghai
Lead Time :
within 15 days upon receipt of the payment

Specifications

1.ultrasound scanner china
2. M display mode
3.8 TGC control
4.10 inches SVGA Monitor

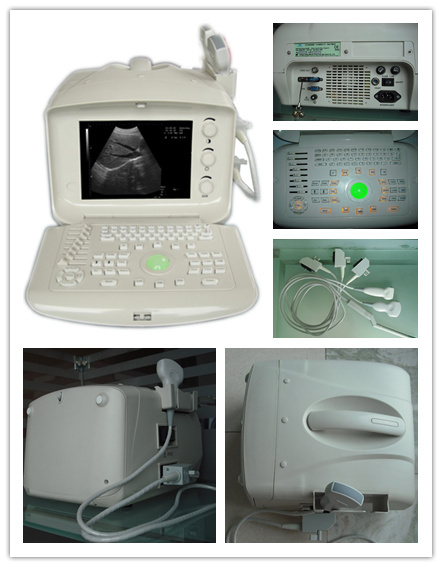

                   Portable Ultrasound Scanner AJ-6100B

AJ-6100B.jpgAJ-6100B pic.jpg

Features

Powerful measurement & calculation software packages

8-Segment TGC adjustment

10 inch VGA monitor

OB measurements: BPD, GS, CRL, FL, AC, HC ,etc

Permanent function of image store: 32 images

Back-lit keyboard

2 probe connectors

Probe automatic identification

Pseudo Color Image output port (PAL-style)



Specification

Scanning mode: Convex/Linear/Trans-vaginal

Display modes: B, B+B, B+M, M, 4B

Scanning depth: 240mm

Gray scales: 256

Body marks: 44

Image conversion: up/down, left/right, black/white

Function of puncture guide

Per: 4-stage per function

Printer function: can connect laser printer and Video printer directly

Comment: Date, Name, Sex, Age, Hospital, Annotation

Zooming: *0.8, *1.0, *1.2, *1.5, *2.0

Port: USB 2.0, VGA, Video connector

Wide application: abdomen, OB/GYN, urology, cardiology etc

USB Function of image store: more than Sixteen thousand images

Power supply: AC 110V-240V, 50HZ/60HZ

Probe connector: 2



Measurement

General menu: Distance, Area, Volume, Angle, Ellipse

Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight

Heart menu: Distance, Time, Slope, Rhythm



Standard Configuration

Main unit

10 inches SVGA Monitor









 AJ-6100B LCD.jpg
