Quick Details

  • Properties: Injection & Puncture Instrument
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: Stackable Syringe Pump --Anjue
  • Model Number: Stackable Syringe Pump-- AJ-P800C
  • Item: Stackable Syringe Pump
  • Model: Stackable Syringe Pump-- AJ-P800C
  • Fit IV tubes: 20d/ml,60d/ml and other, as well as brown tubes
  • Pump Type: Peristaltic finger
  • Delivery rate range: 1-1999min (1min step)
  • Volume limit range: 0-9999ml (1 ml step)
  • Purge Rate: 600.0ml/h
  • Occlusion pressure: Three level setting LOW, MEDIUM or HIGH
  • Delivery: fast delivery time

Packaging & Delivery

Packaging Details Stackable Syringe Pump packing,
International Standard Carton or as your need.
Delivery Time 15days--Stackable Syringe Pump

Specifications

Stackable Syringe Pump,
Drop Detector:Outside caliper rotary detector (patent)
Control Way:Drop counting and adjusting

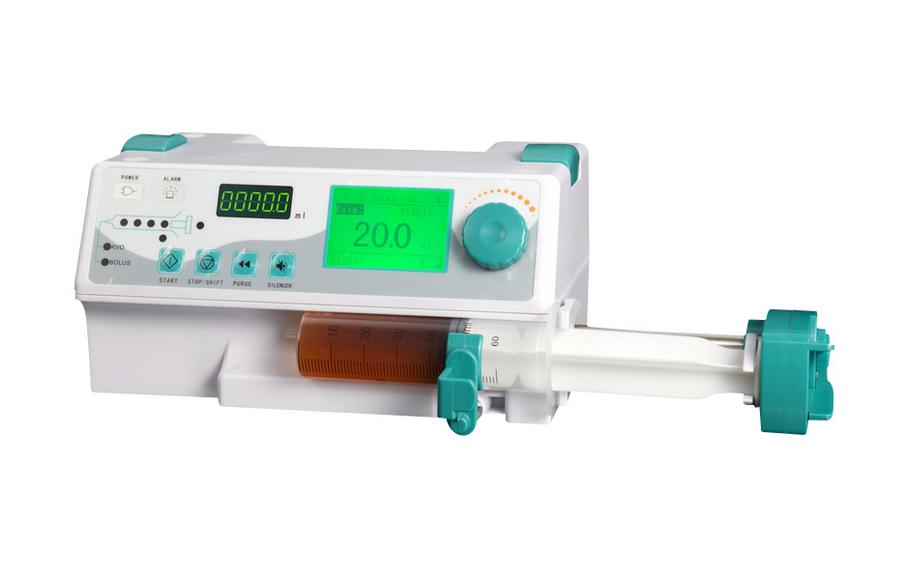

Stackable Syringe Pump with Drug Library & Infusion Record AJ-P900G





FEATURES

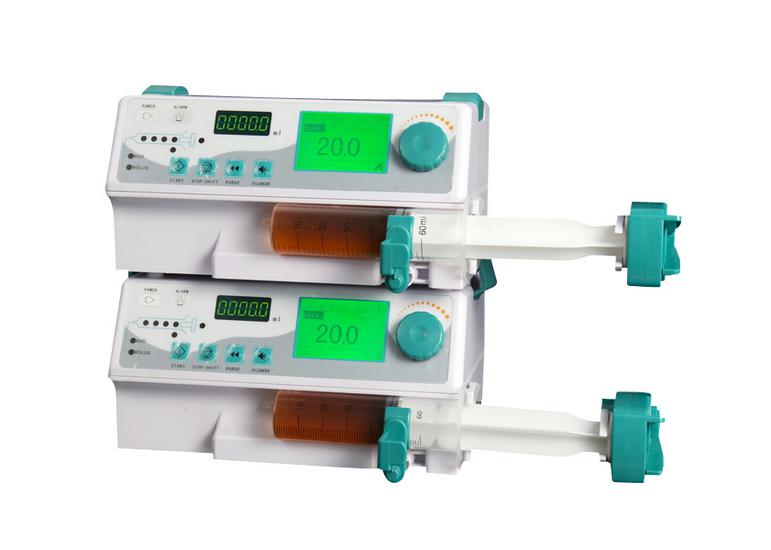

1. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.

2. Stackable to be the maximum 8 channels.
3. Transfer the message between the Nurse-call System and the pumps.

4. Three working modes: rate mode, time-volume mode, dosage-weight mode.

5. Unique Voice Alarm system and accurate injection rate make the injection process safer and more reliable.

6. Have store many brands syringes, Automatically calibration and compatible with any brand syringes.

7. Large LCD screen displays working status.

8. KVO and Bolus functions.

9.Has drug library with more than 500 drugs.

10.Has 2000 records.





SPECIFICATION

Product name

Stackable syringe pump with drug library AJ-P900G

Unique Voice Alarm system

The device triggered the voice prompt and stop

injection automatically when there is any malfunction,

making the infusion process safer and more reliable.

Flow rate

50ml syringe:0.1~1500ml/h;

30ml syringe:0.1~900.0ml/h;

20ml syringe:0.1~600.0ml/h;

10ml syringe:0.1~300.0ml/h

The range of limiting volume

0~999.9ml

The range of injected volume

0~9999.9ml

Accuracy of flow rate

Within ±3%(Choose the syringe of specified manufacturer

 correctly. This accuracy of flow rate is not including the errors of syringe itself.)

Purge rate

Purge rate of 50ml syringe:1500ml/h;

Purge rate of 30ml syringe:900.0ml/h;

Purge rate of 20ml syringe:600.0ml/h;

Purge rate of 10ml syringe:300.0ml/h

Alarm and warms

The pump can give out alarming when injection soon finish,

 injection finishing, injection of limited amount finished,

 injection is blocked, syringe falls off, syringe is improperly

installed, setting error, AC power has been pulled out, low battery and so on.

Injection blocked

Choose in the three kinds of occlusion alarm pressure

according to the clinical requirements(High,Medium,Low)

KVO rate

1ml/h

Fuse specification

F1AL/250V ,two fuses(installed inside pump)

Operating power

AC100~240.0V, 50/60Hz,  Power:≤30VA

Internal rechargeable battery: DC 11.1V,capacity≥1600mAh.

The device could work constantly more than 4 hour at medium

speed running mode, after the battery charged for 10 hours.

Operating environment

temperature:+5~+40°C,  relative humidity:20~90%

Storing environment

temperature:-30°C~+55, relative humidity:≤95%, ( No condensation state )

Atmospheric pressure

860hPa~1060hPa

Safety level

Class II with insulated enclosure, internal power supply, BF-type continuous normal running equipment.

IP grade

IPX1

Dimensions

280(L)×210(W)×130(H)(mm)

Weight

2.2kg

Accessories

Power line,operating manual,warranty card,product certification.
