CE marked Dialysis Machine

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Dialysis Powder & Dialysis Solution
Brand Name:
ANJUE
Model Number:
AJ-2008B
Place of Origin:
Anhui, China (Mainland)
Dialysate flux:
300~800 ml/min
UF rate Flow range:
0 ml/h ~ 4000 ml/h
Supply Ability
Supply Ability:
300 Unit/Units per Month
Packaging & Delivery
Packaging Details
standard export packing
Port
Shanghai, Shenzhen, Guangzhou, all cities of China
Lead Time :
3 days

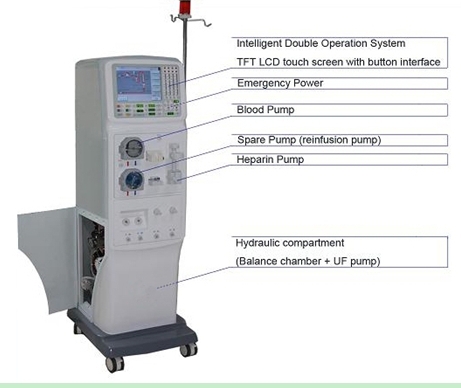

Double Pump LCD Touch Screen AJ-2008B Dialysis Machine





Application



AJ-2008B haemodialysis machine is applicable for chronic renal failure and other blood purification treatment.This device should be used in medical units.This device is specially designed, produced and sold for renal failure patients to receive haemodialysis, which is not allowed to be used for other purposes.







Introduction



Size & Weight Size: 380mm×400mm×1380mm (L*W*H)



Area: 500*520 mm



Weight: 88KG



Power Supply AC220V, 50Hz / 60Hz, 10A



Input power: 1500W



Back-up battery: 30 minutes (optional)



Water input pressure: 0.15 MPa   ~ 0.6 MPa, 21.75 P.S.I. ~ 87 P.S.I.



Water input temperature: 10℃~ 30℃



Working environment: temperature 10ºC ~ 30ºC at relative humidity of no more than 70%.







Dialysate



Dialysate temperature: preset range 34.0℃~ 39.0℃



Dialysate flux: 300~800 ml/min



Dialysate concentration: 12.1 mS/cm ~ 16.0 mS/cm, ±0.1 mS/cm



Dialysate mixing ratio:can set variety ratio.



UF rate Flow range:0 ml/h ~ 4000 ml/h



Resolution ratio: 1ml



Precision: ±30 ml/h







Extracorporeal Part



Venous pressure: -180 mmHg ~ +600 mmHg, ±10 mmHg



Arterial pressure : -380 mmHg ~ +400 mmHg, ±10 mmHg



TMP  pressure : -180 mmHg ~ +600 mmHg, ±20 mmHg



Blood pump flow range: 20 ml/min ~ 400 ml/min(diameter:6 mm)



Spare pump flow range: 30 ml/min ~ 600 ml/min(diameter:8 mm)



Resolution ratio: 1 ml



Precision: error range ±10ml or 10% of reading







Heparin Pump



Syringe size: 20, 30, 50 ml



Flow range: 0 ml/h ~ 10 ml/h



Resolution ratio: 0.1ml



Precision: ±5%







Sanitize



1.Hot decalcification :



Time: about 20 minutes



Temperature: 30~60℃, 500ml/min.



2.Chemical disinfection :



Time: about 45 minutes



Temperature: 30~40℃, 500ml/min.



3. Heat disinfection :



Time: about 60 minutes



Temperature: >85℃, 300ml/min.



Storage Environment  Storage temperature should be between 5℃~ 40℃, at relative humidity of no more than 80%.







Monitoring System



Dialysate temperature: preset range 34.0℃~ 39.0℃, ±0.5



Blood leak detection: Photochromic



Alarm when erythrocyte specific volume is 0.32±0.02 or blood leak volume is equal or more than 1ml per liter of dialysate



Bubble detection: ultrasonic



Alarm when a single air bubble volume is more than 200µl at 200ml/min blood flow



Conductivity: acoustic-optic, ±0.5%







Language

English and French etc.
