Windows operation interface, figure button, mouse operation
96-well plate, multiple tests in the single plate.
Arrangement of Test item in micro-plate can be store and re-use
Parameter can be modified and stored
Plate shaking, speed and time adjustable
Open system, test item and parameters can be added or modifiedLarge storage for 1000 test item and 1,000,000 results
10.4 inch color LCD
Printing comprehensive report, include hospital and patient information and test results

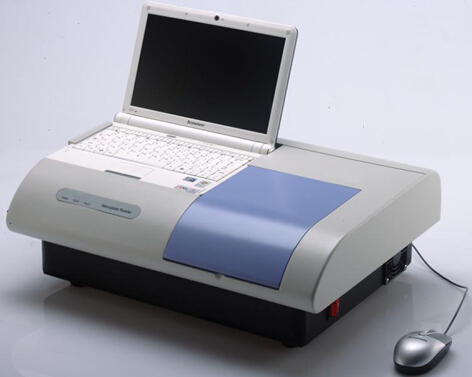

Built-in Laptop Computer, Easy to use.
Micro plate types: 96-well plate(U,V,or plat-bottom)
Test mode: End-point, kinetic, Multi-wave analysis
Measuring system: 8-channel optical system
Light source: Tungsten Halogen,12V/20W,>2000 hours
Wavelength: 405nm, 450nm, 492nm, 630nm, 4 free positions for additional filters
Wavelength accuracy < 2nm
Reading range: 0.000-4.000 Abs
Measurement range: 0.000-3.000Abs
Resolution <1% or ±0.001Abs
Linearity: r > 0.999
Repeatability: < 0.3%
Reading speed : 5s single wavelength , 10s double wavelength
QC: Westguard Multi-rule, automated QC alert.
Self-Checking function : Self-checking and calibration function.
CPU: High-speed CPU
Printer: External jet printer, multi-form patient report.
Interface :RS232 interface, USB and PC connection.
Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100w
Work environment: Temp 5℃-40℃;Humi ≤85%;
Machine Dimension: : 43CM*34CM*16CM
Weight: 9 KG
